Raptor E5S Slim Rugged Handheld

Raptor E5S

Slim Rugged Handheld

E5S Specification

A durable but super slim rugged Android handheld with built in Zebra 2D barcode scanner. The E5S almost feels like a smartphone in hand with a slim, lightweight form factor that's still very rugged with lots of accessories.

Aggressive Zebra SE4710 barcode scanner

Large, sealed battery

Slim, light and ergonomic

Technical Specification & downloads

Expand +

Battery
Battery type
Sealed Li-ION Polymer
Capacity
4100mAh
Backup battery
-
Network
4G Bands
1, 2, 3, 7, 8, 20, 28A, 28B, 38, 39, 40, 41
3G Bands
HSPA+ 850/900/1900/2100
2G Bands
850/900/1800/1900
SIM slots
2x Dual SIM
Connectivity
Wlan
WiFi 802.11 a/b/g/n/r/ac
Bluetooth
BT v4.1, BR/EDR/BLE
GPS
A-GPS / GLONASS / BeiDou
Barcoding / RFID
2D Zebra SE4710

Linear

UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post

2D Stacked

PDF417, MicroPDF417, GS1 Composite

2D Matrix

Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code

Postal

Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code

OCR Option: OCR-A, OCR-B, E13B (MICR)

SE4710 Full spec

RFID
Supports 13.56Mhz, ISO14443A/B, ISO15693 standard
NFC
Yes
Expansion
MicroSD
Yes
OTG capable
Yes
CPU & RAM
CPU
Qualcomm snapdragon MSM8940 Octa-Core 1.4 GHz
RAM
2GB (4GB Option)
ROM
16GB (64GB option)
OS
Android v8.1, Google Play (GMS), with Safedroid
Size & Weight
Size (mm)
158x76x12 (h,w,d)
Weight
210g (inc battery)
Screen/Display
LCD Size
5"
Resolution
1280x720(HD) TFT, works with gloves and in wet.
Scratch/impact cover
RAPTEC "no more cracks" Impact screen
Durability/Rugged features
operating temp
-20 to 50 C
Storage temp
-30 to 60 C
Drop Spec
1.5M
Dustproof
IP65 (dust tight)
Waterproof
IP65 - Water proof
Shockproof
500 tumbles at 0.5M
Other testing
MIL-STD 810G: humidity 5%-95%
Connector
Rugged copper dot connector + USB-C.
Camera
Main (rear)
13MP, AF + Flash
Front
2MP + AF
Media
Audio
Loudspeaker, microphone, supports speaker phone
Headphones
3.5mm headphone jack
Sensors
Proximity
Yes
Ambient light
Yes
E-Compass
Yes
Accelerometer
Yes
G-Sensor
Yes
Notification
Vibration/Sound alert
keys/Buttons
Hard Keys
Power, Volume up, Volume down, scanner left/right, bespoke button (PTT)
Soft Keys
Android Menu, Home, Back
Hide Spec

Slim and lightweight design

Only 210g.

12.5mm thick.

Light and easy to use all day.

Rugged smartphone connector

Aggressive barcode scanning

The Zebra SE4710 2D barcode scanner is a capable, fast and accurate barcode scanner.

Left and right dedicated scanner buttons for ergonomic all day use.

Wedge feature for app compatibility or use API to program barcoding into your own applications.

Raptor E5S barcode scanning

Tough and durable

The Raptor E5 is rugged and built for Industry working.

DROP PROOF to 1.5M - Exceeds even military specifications

WEATHER PROOF - IP65 means Totally weather proof

DUST TIGHT - Dust, grit, sand proof

BUILT RUGGED - Gorilla glass, ergonomic shape and handstrap make the E5 easy to grip and hold

Learn more

Raptor E5 handheld in cradle Raptor E5 handheld in cradle Raptor E5 handheld in cradle

Enterprise Accessories

Everything you need for an ergonomic, business focused mobile solution.

View all E5S accessories

Durable, flexible Connector

Multiple connector options offer the durability of pogo pin charging, with the features of USB-C.

Rugged smartphone connector

Big, bright screen works in the wet

HD screen, bright enough for outdoor working.

Works in the wet with gloves on.

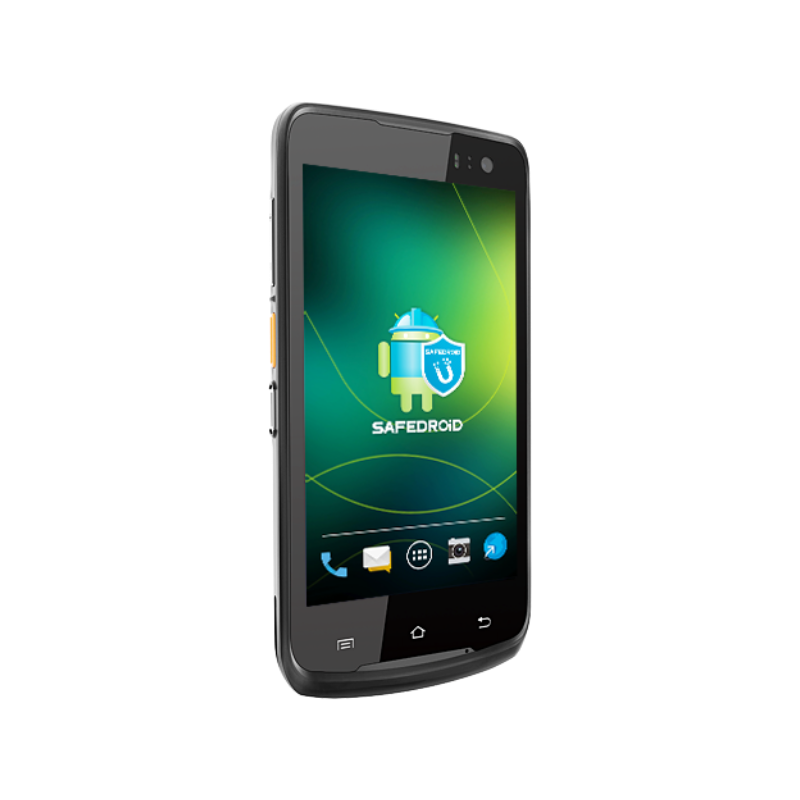

Reliable Operating system

GMS Certified Operating system

regular OS updates

Safedroid layer adds features and security

Safedroid Android OS
Safedroid Android OS

Awesome warranty & support

Support is what sets Raptor apart and our Raptor E5S enjoys the best support and repair services you'll find

FAST

Even our most basic support and warranty services are fast.

Repair portal
SIMPLE

Our "Raptorhub" portal makes running your devices support easy.

Proven support
Proven

95% of basic warranty repairs completed in under 24 hours.

TCO Rugged support
PEACE OF MIND

Multi-year support contracts for peace of mind. Lots of bespoke services.

learn more

The Raptor E5 Rugged Android Handheld is Ideal for

Our customers

Meet our rugged handheld Family

Highly Focussed, rugged devices with deep features, quality and "built for business" support.

View our rugged hardware page
